CM4 Reticle Details
3-15x50 Challenger CM4
3-18x50 Challenger/Beast CM4
4-16x50 Hornet CM4
5-25x56 Challenger CM4
5-30x56 Challenger CM4

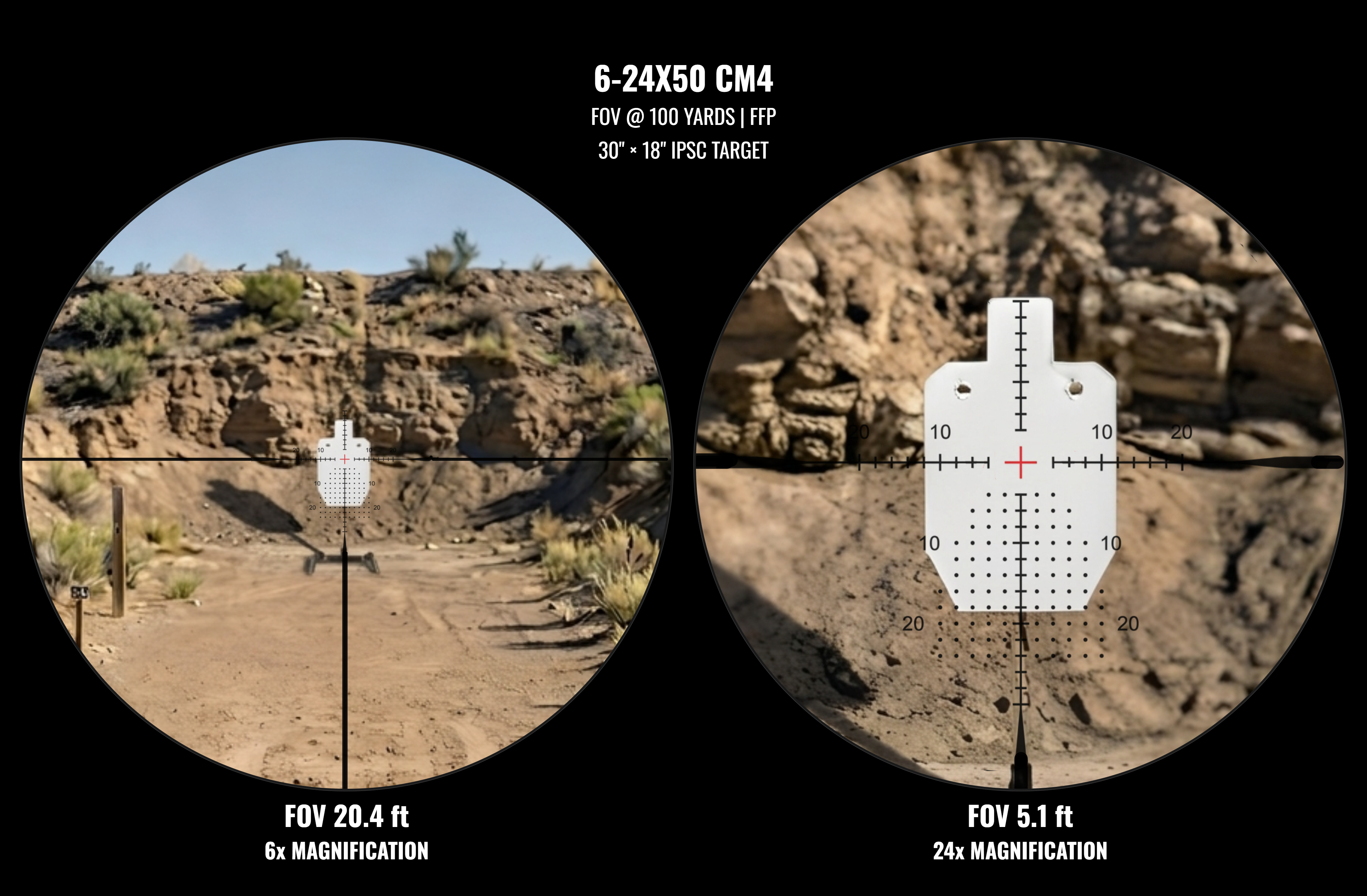

6-24x50 Challenger CM4
| Reticle | Focal Plane | Reticle Pattern | Minimum | FOV Min (100 yards) | Maximum | FOV Max (100 yards) | Height 30" (min) | Width 18" (min) | Height 30" (max) | Width 18" (max) |
|---|---|---|---|---|---|---|---|---|---|---|

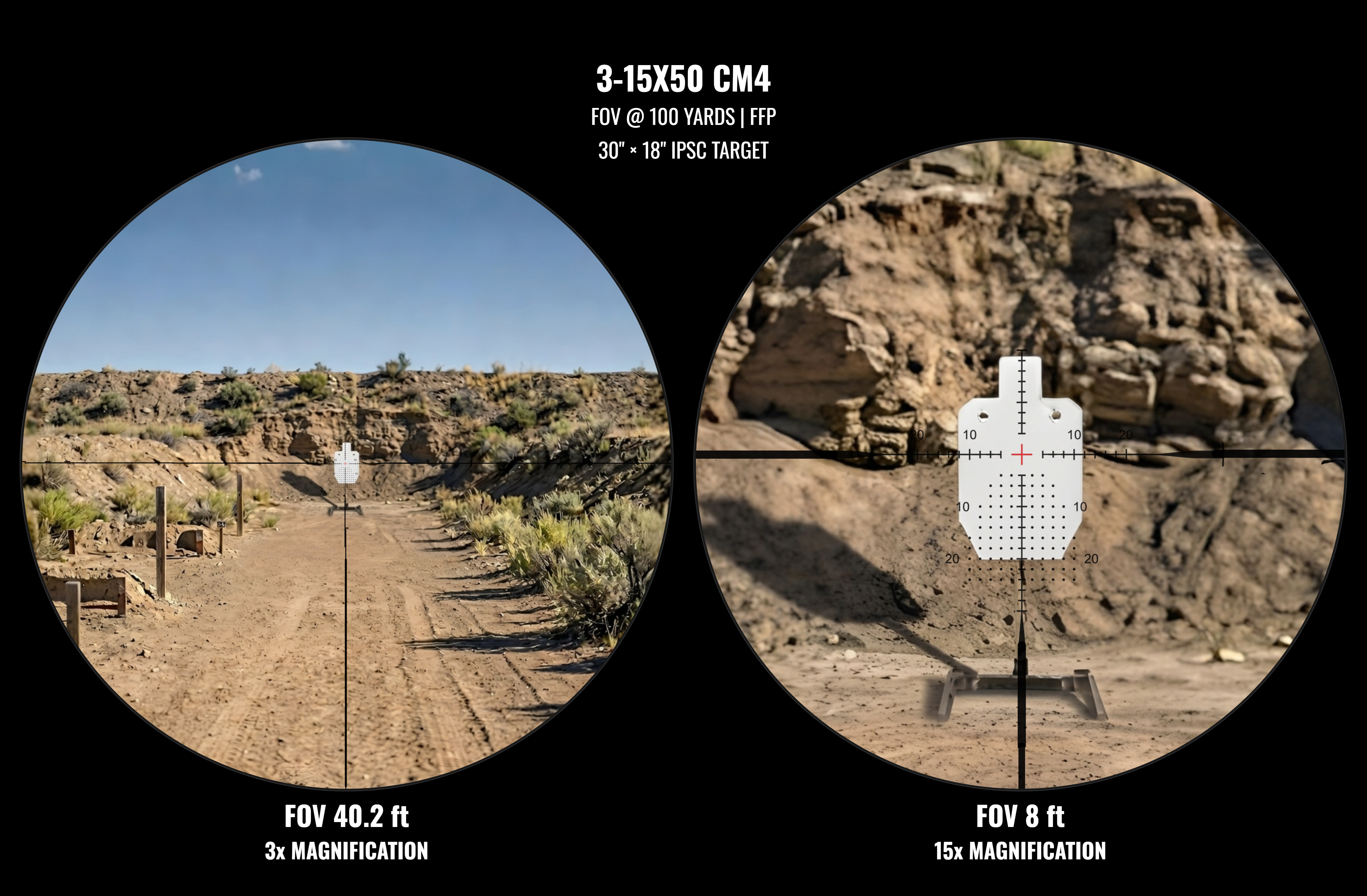

| 3-15x50 Challenger CM4 | FFP | CM4 | 3 | 40.2 | 15 | 8 | 30 MOA | 18 MOA | 30 MOA | 18 MOA |

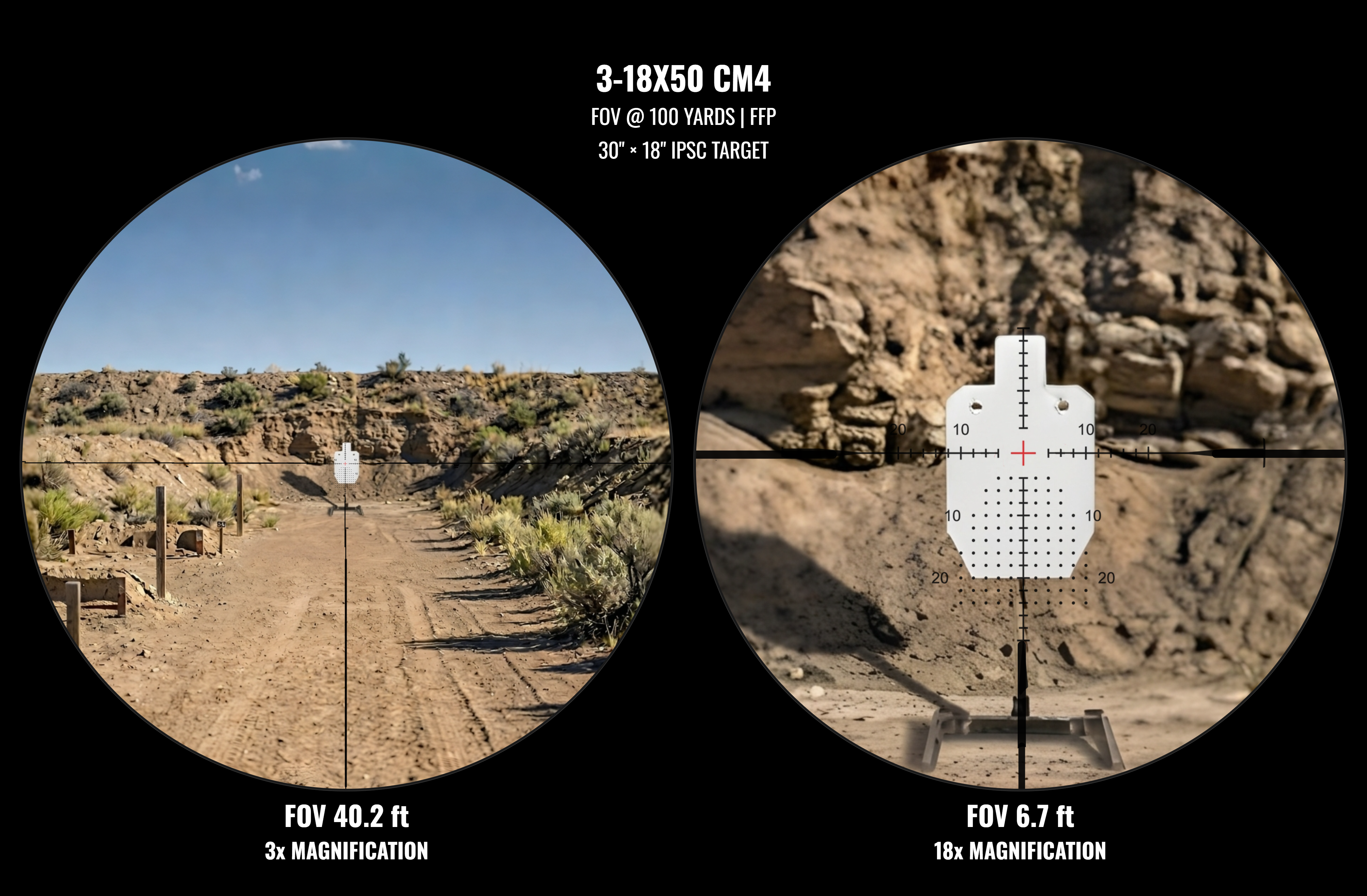

| 3-18x50 Challenger/Beast CM4 | FFP | CM4 | 3 | 40.2 | 18 | 6.7 | 30 MOA | 18 MOA | 30 MOA | 18 MOA |

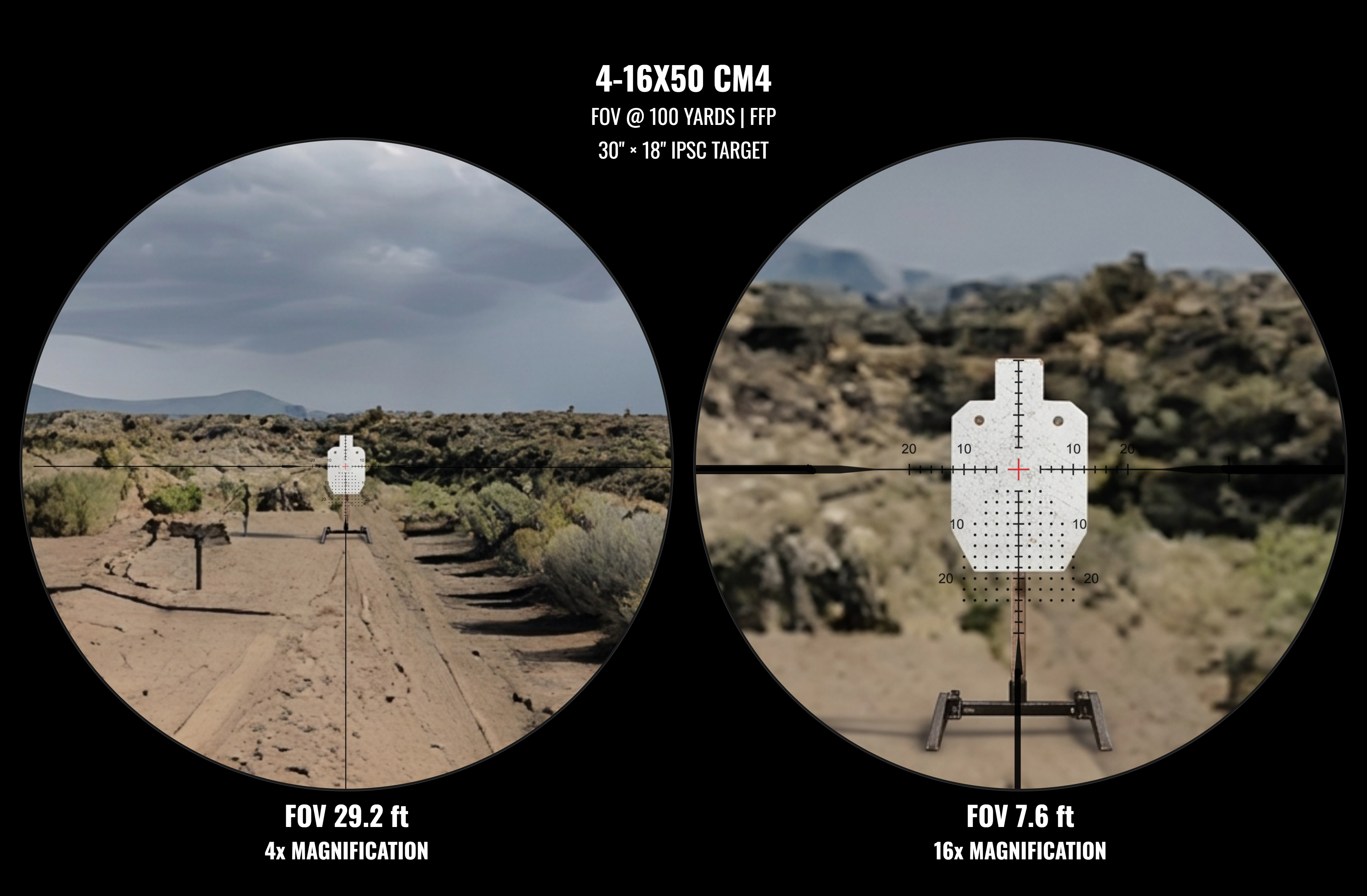

| 4-16x50 Hornet CM4 | FFP | CM4 | 4 | 29.2 | 16 | 7.6 | 30 MOA | 18 MOA | 30 MOA | 18 MOA |

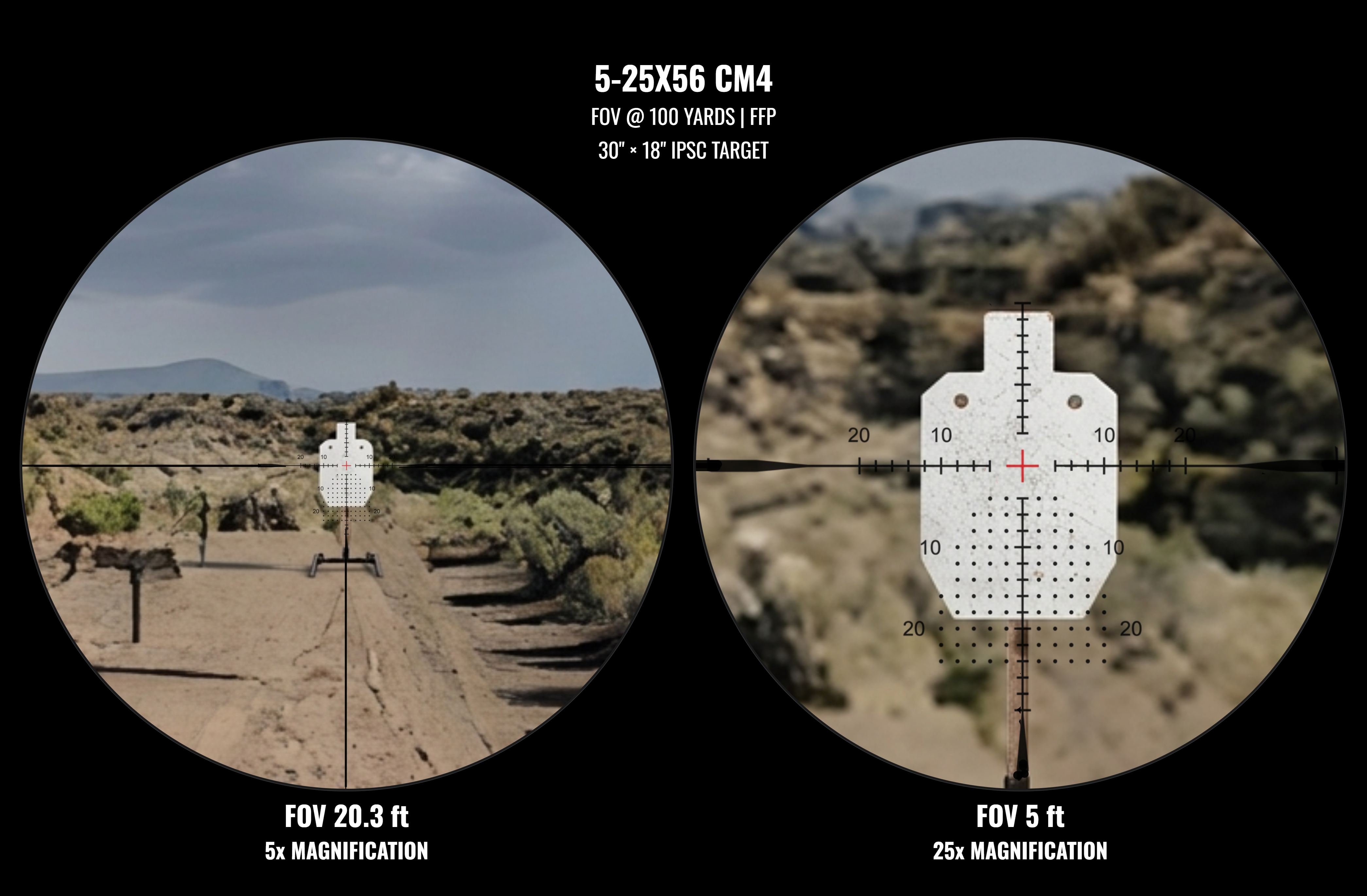

| 5-25x56 Challenger CM4 | FFP | CM4 | 5 | 20.3 | 25 | 5 | 30 MOA | 18 MOA | 30 MOA | 18 MOA |

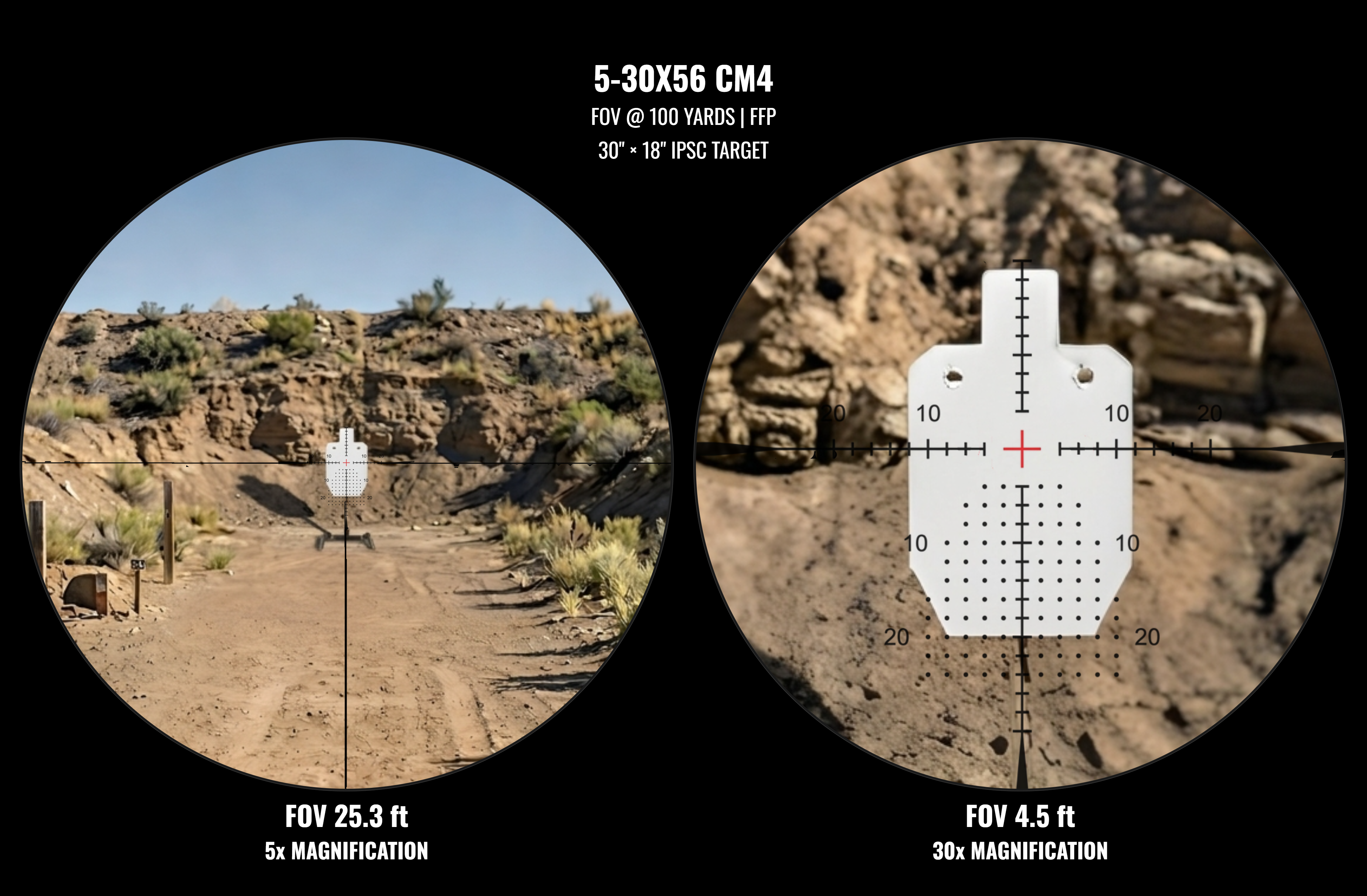

| 5-30x56 Challenger CM4 | FFP | CM4 | 5 | 25.3 | 30 | 4.5 | 30 MOA | 18 MOA | 30 MOA | 18 MOA |
Available in These Optics:
