CM5 Reticle Details
1-6x24 Panzer/Beast/Archangel/Terminator CM5
1-8x24 Panzer/Beast/Archangel/Terminator CM5
1-10x24 Panzer/Beast/Archangel/Terminator CM5
| Reticle | Focal Plane | Reticle Pattern | Minimum | FOV Min (100 yards) | Maximum | FOV Max (100 yards) | Height 30" (min) | Width 18" (min) | Height 30" (max) | Width 18" (max) |
|---|---|---|---|---|---|---|---|---|---|---|

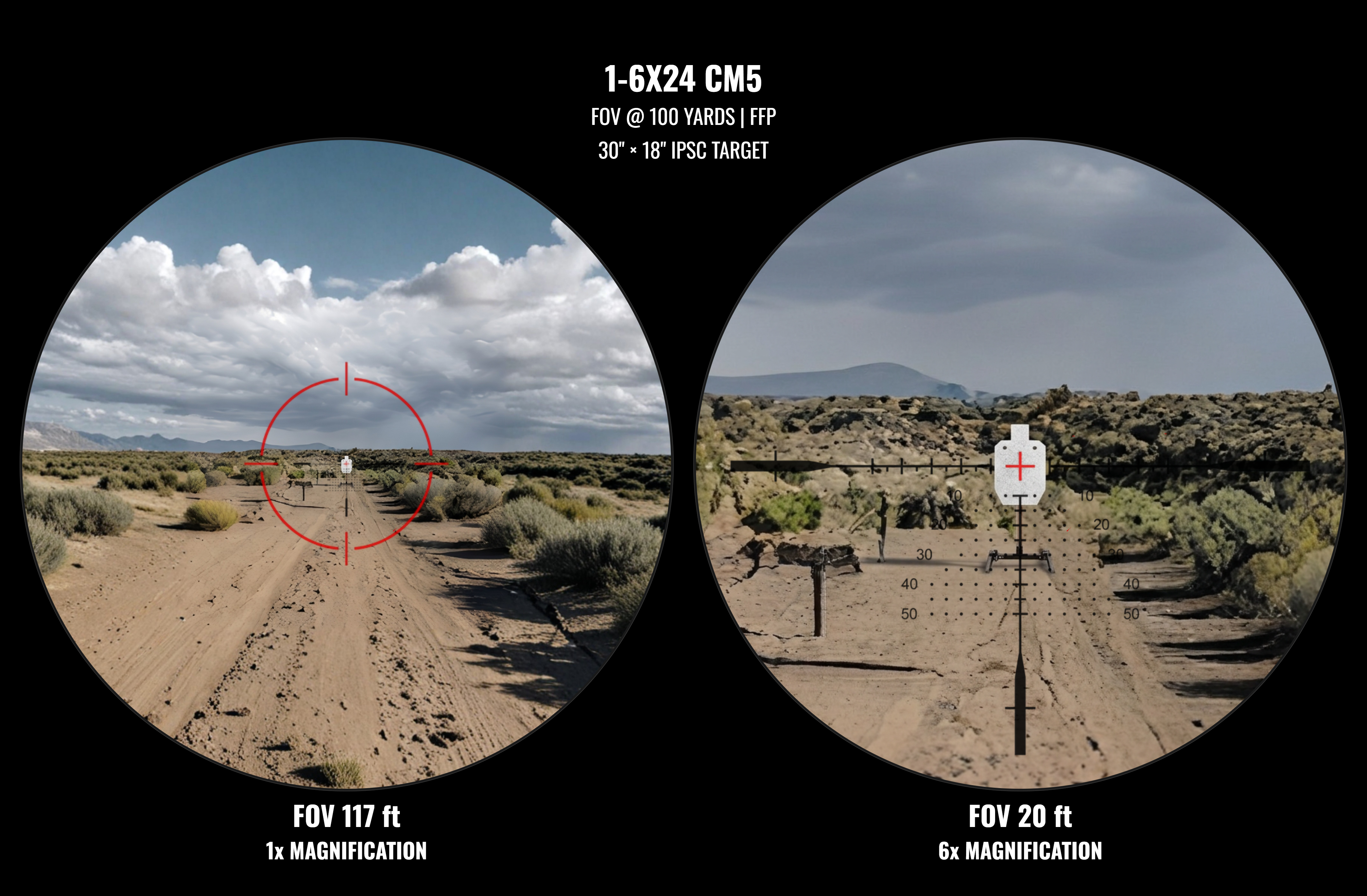

| 1-6x24 Panzer/Beast/Archangel/Terminator CM5 | FFP | CM5 | 1 | 117 | 6 | 20 | 30 MOA | 18 MOA | 30 MOA | 18 MOA |
| 1-8x24 Beast CM5 | FFP | CM5 | 1 | 110.6 | 8 | 14.6 | 30 MOA | 18 MOA | 30 MOA | 18 MOA |

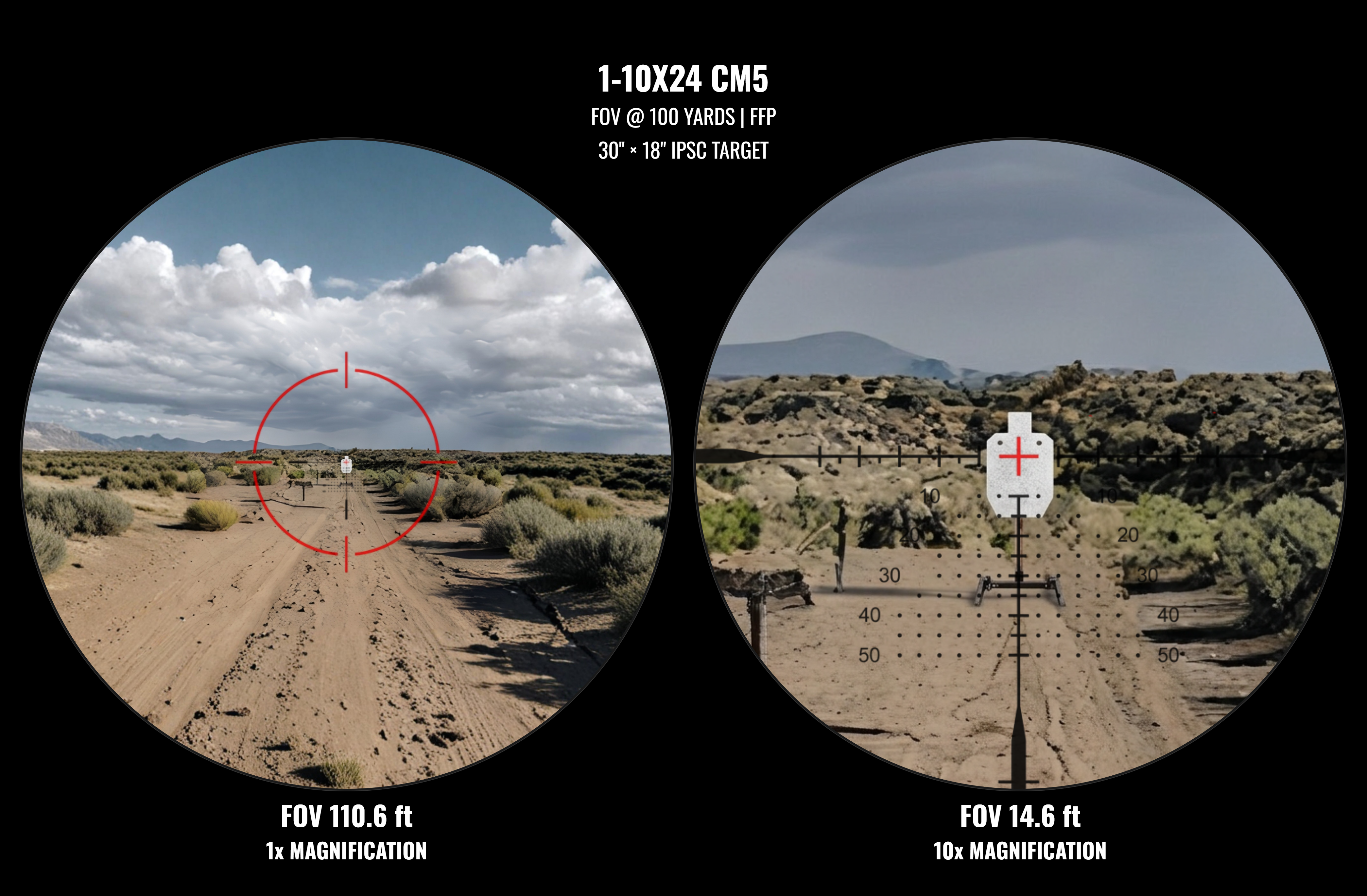

| 1-10x24 Panzer/Beast/Archangel/Terminator CM5 | FFP | CM5 | 1 | 110.6 | 10 | 14.6 | 30 MOA | 18 MOA | 30 MOA | 18 MOA |
Available in These Optics:
