MM4 Reticle Details
3-15x50 Challenger
3-18x50 Challenger/Beast
4-16x50 Hornet
5-25x56 Challenger
5-30x56 Challenger
6-24x50 Challenger
| Reticle | Focal Plane | Reticle Pattern | Minimum | FOV Min (100 yards) | Maximum | FOV Max (100 yards) | Height 30" (min) | Width 18" (min) | Height 30" (max) | Width 18" (max) |
|---|---|---|---|---|---|---|---|---|---|---|

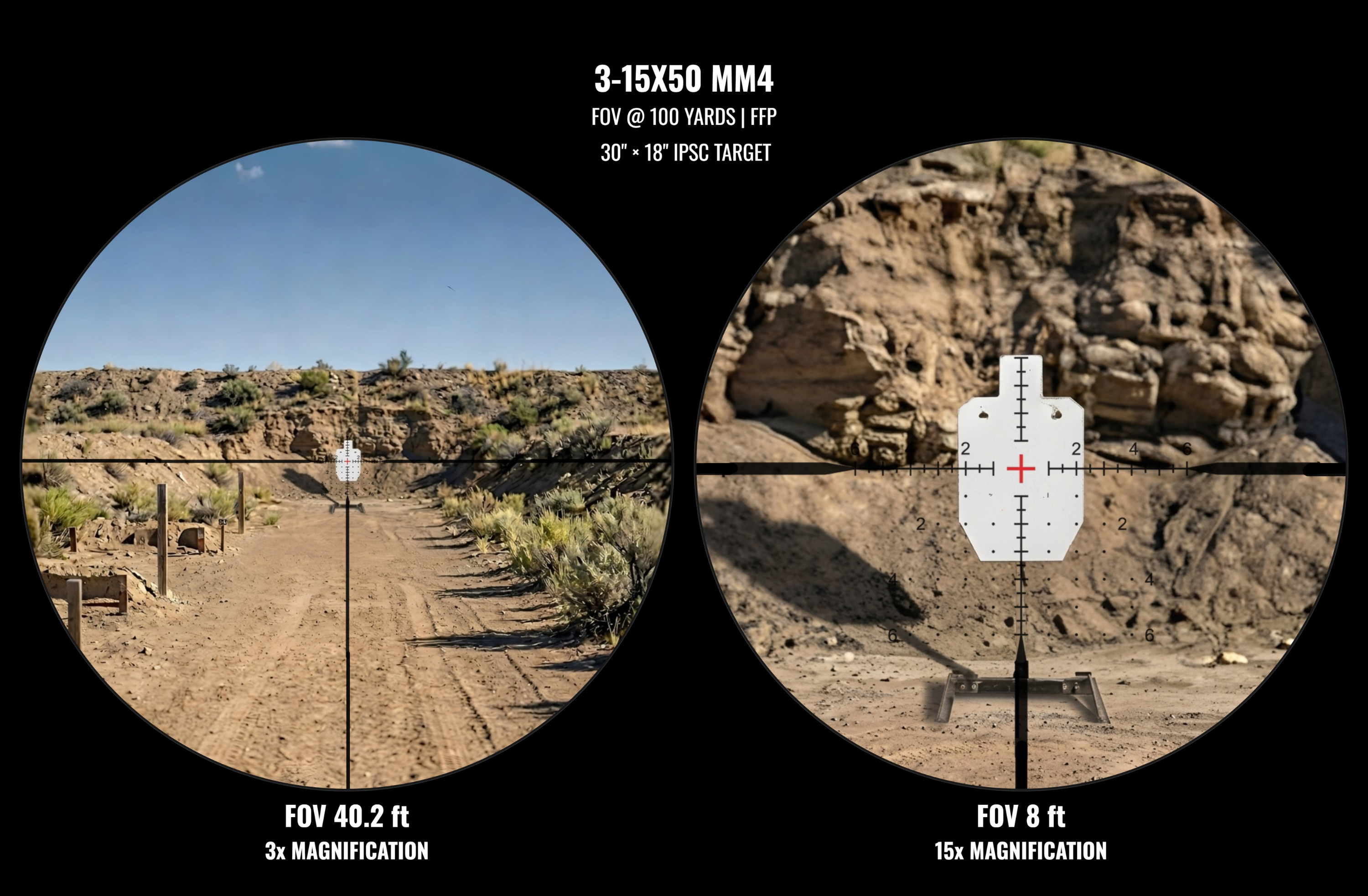

| 3-15x50 Challenger MM4 | FFP | MM4 | 3 | 40.2 | 15 | 8 | 8.73 MIL | 5.24 MIL | 8.73 MIL | 5.24 MIL |

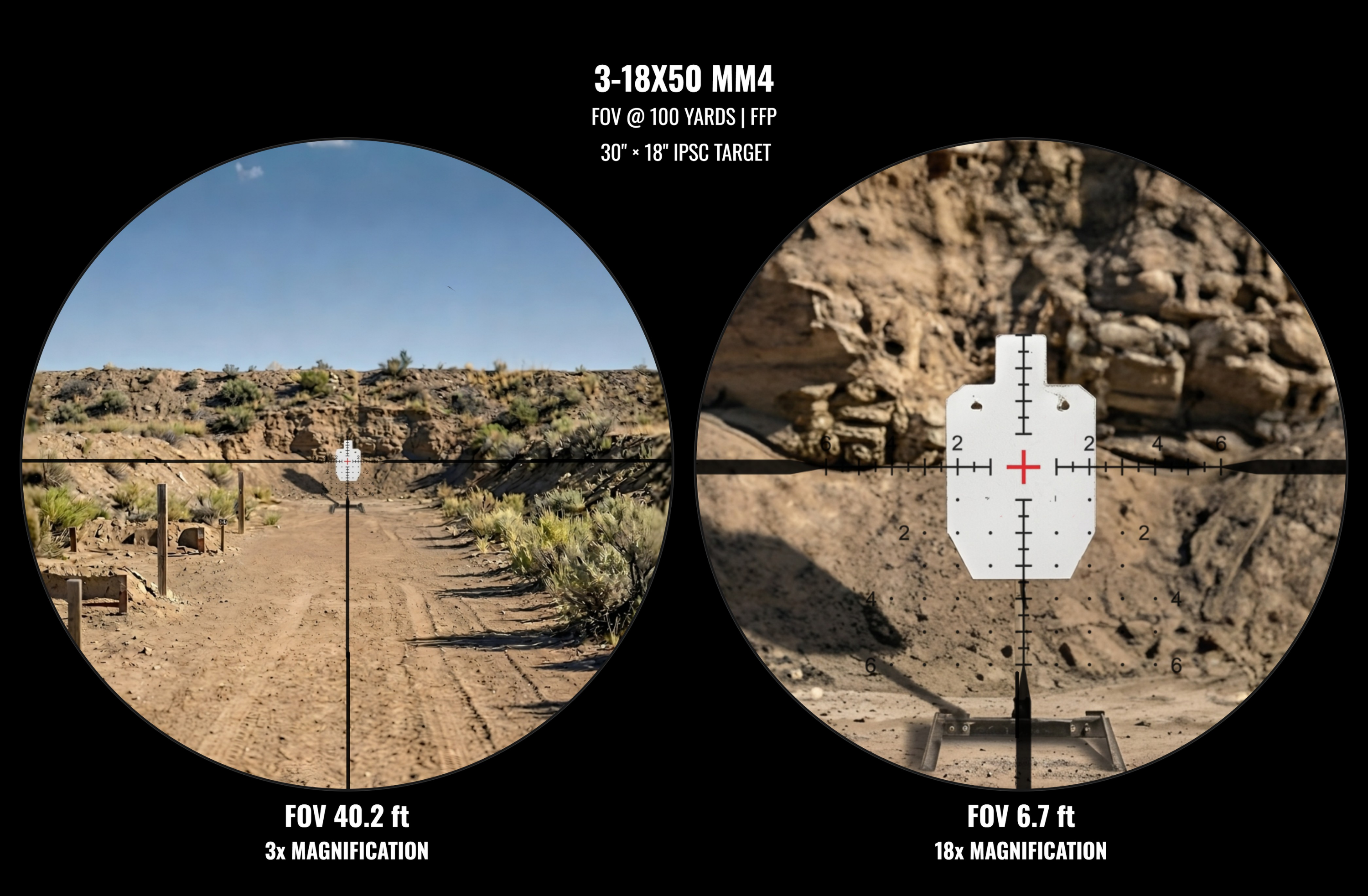

| 3-18x50 Challenger/Beast MM4 | FFP | MM4 | 3 | 40.2 | 18 | 6.7 | 8.73 MIL | 5.24 MIL | 8.73 MIL | 5.24 MIL |

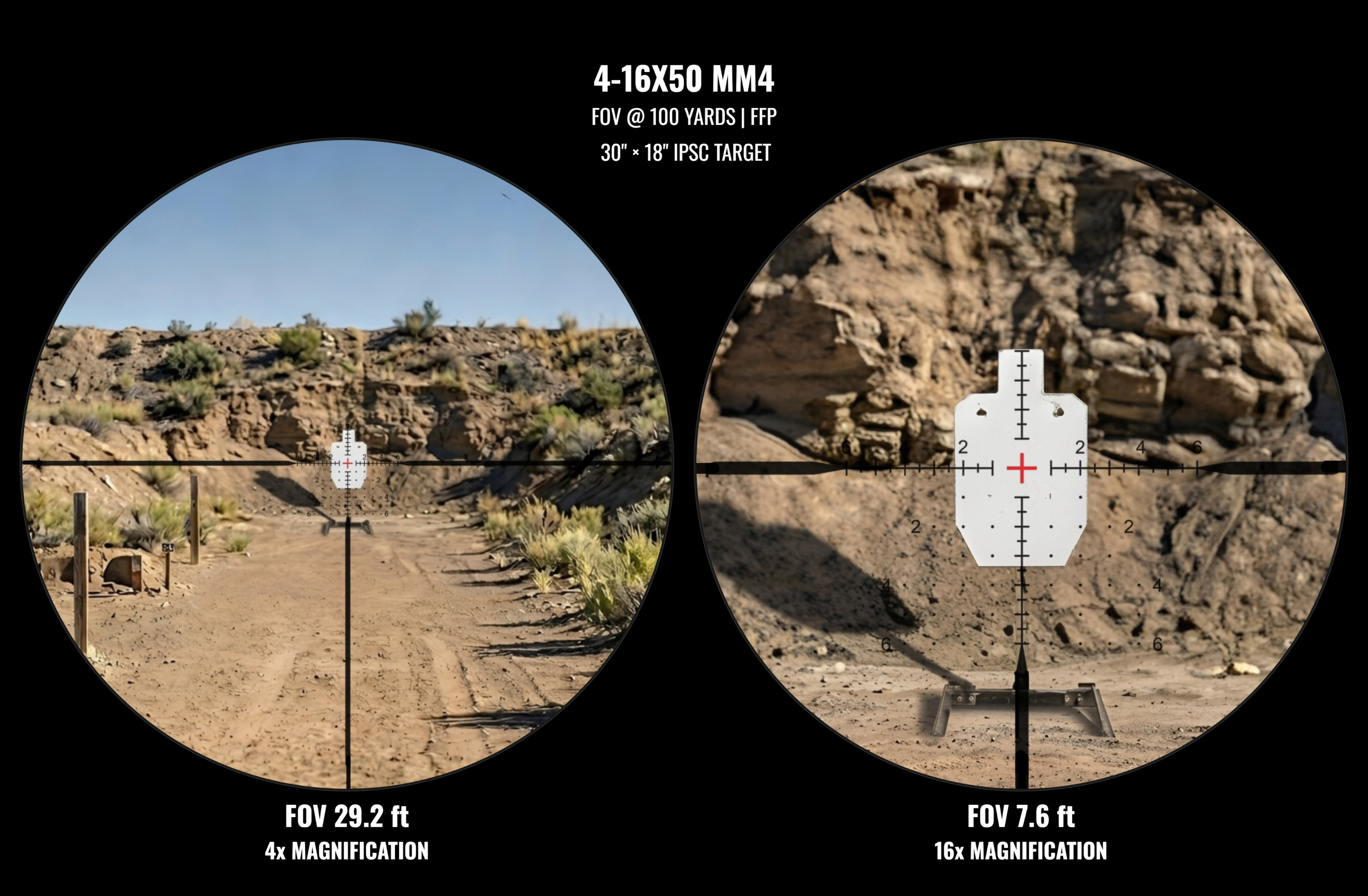

| 4-16x50 Hornet MM4 | FFP | MM4 | 4 | 29.2 | 16 | 7.6 | 8.73 MIL | 5.24 MIL | 8.73 MIL | 5.24 MIL |
| 5-25x56 Challenger MM4 | FFP | MM4 | 5 | 20.3 | 25 | 5 | 8.73 MIL | 5.24 MIL | 8.73 MIL | 5.24 MIL |

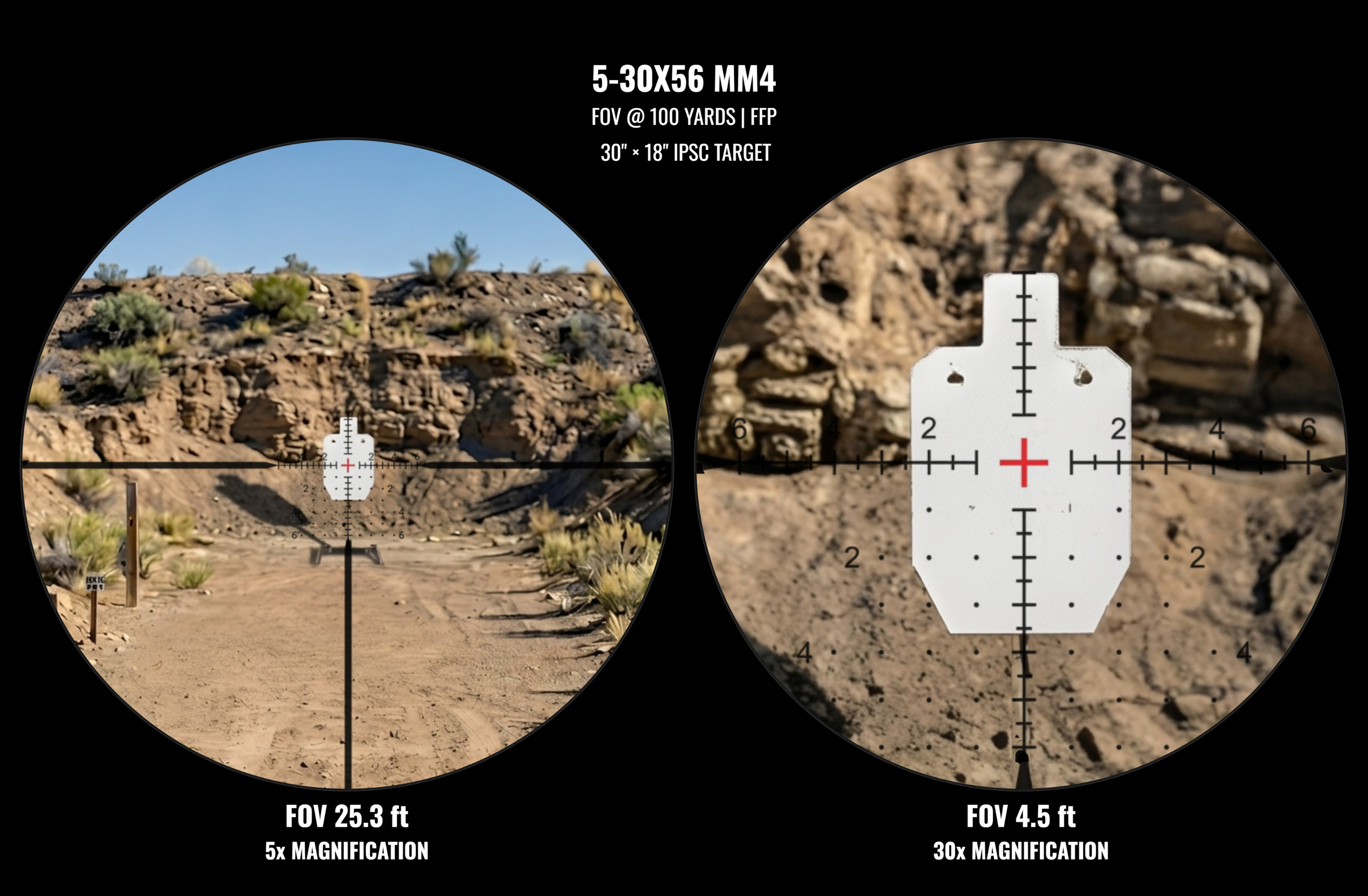

| 5-30x56 Challenger MM4 | FFP | MM4 | 5 | 25.3 | 30 | 4.5 | 8.73 MIL | 5.24 MIL | 8.73 MIL | 5.24 MIL |
Available in These Optics:
