MM6 Reticle Details
3-15x50 Hornet
3-18x50 Challenger/Beast
5-25x56 Beast
5-30x56 Beast
6-24x50 Beast
| Reticle | Focal Plane | Reticle Pattern | Minimum | FOV Min (100 yards) | Maximum | FOV Max (100 yards) | Height 30" (min) | Width 18" (min) | Height 30" (max) | Width 18" (max) |
|---|---|---|---|---|---|---|---|---|---|---|

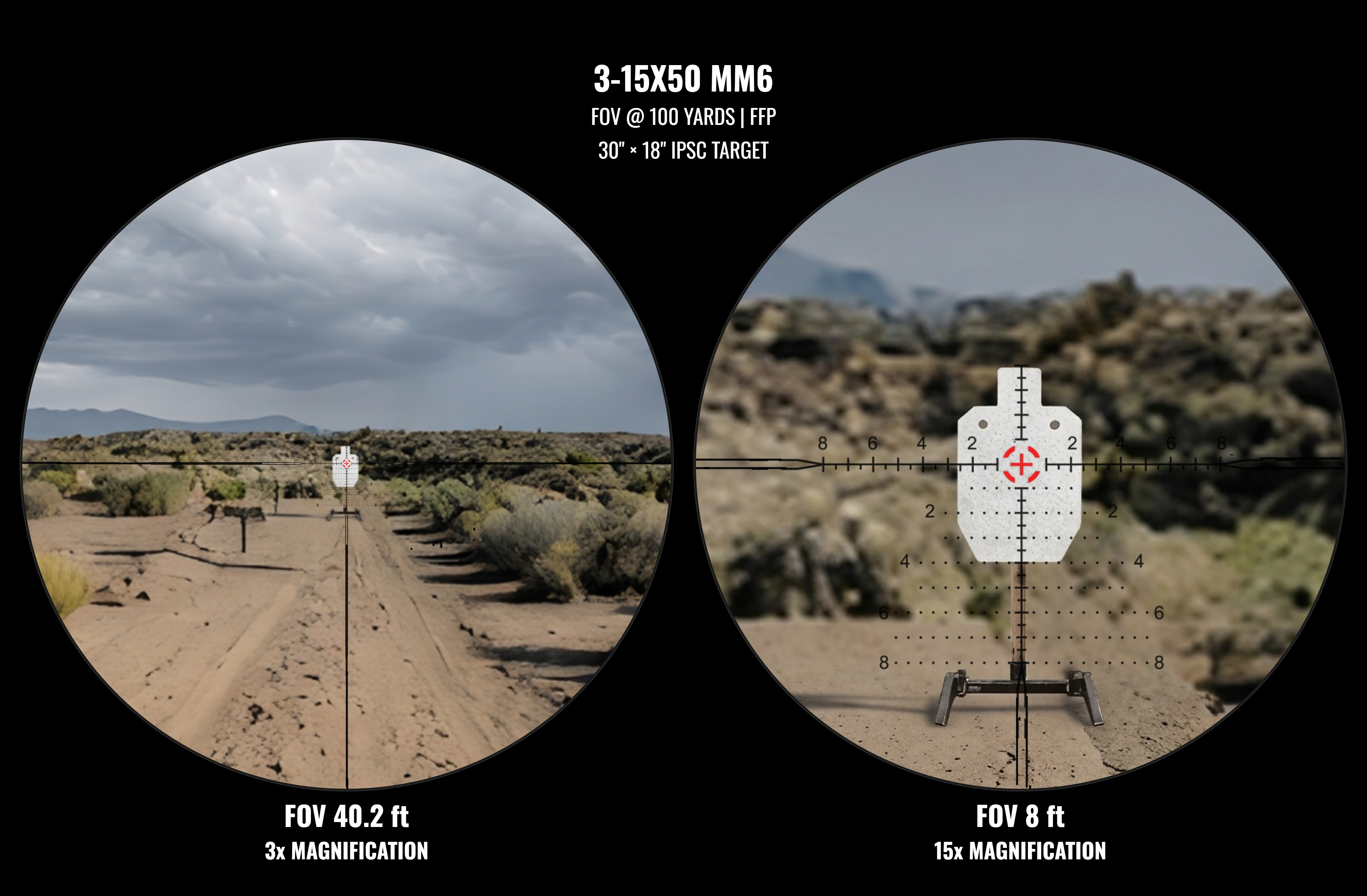

| 3-15x50 Hornet MM6 | FFP | MM6 | 3 | 40.2 | 15 | 8 | 8.73 MIL | 5.24 MIL | 8.73 MIL | 5.24 MIL |

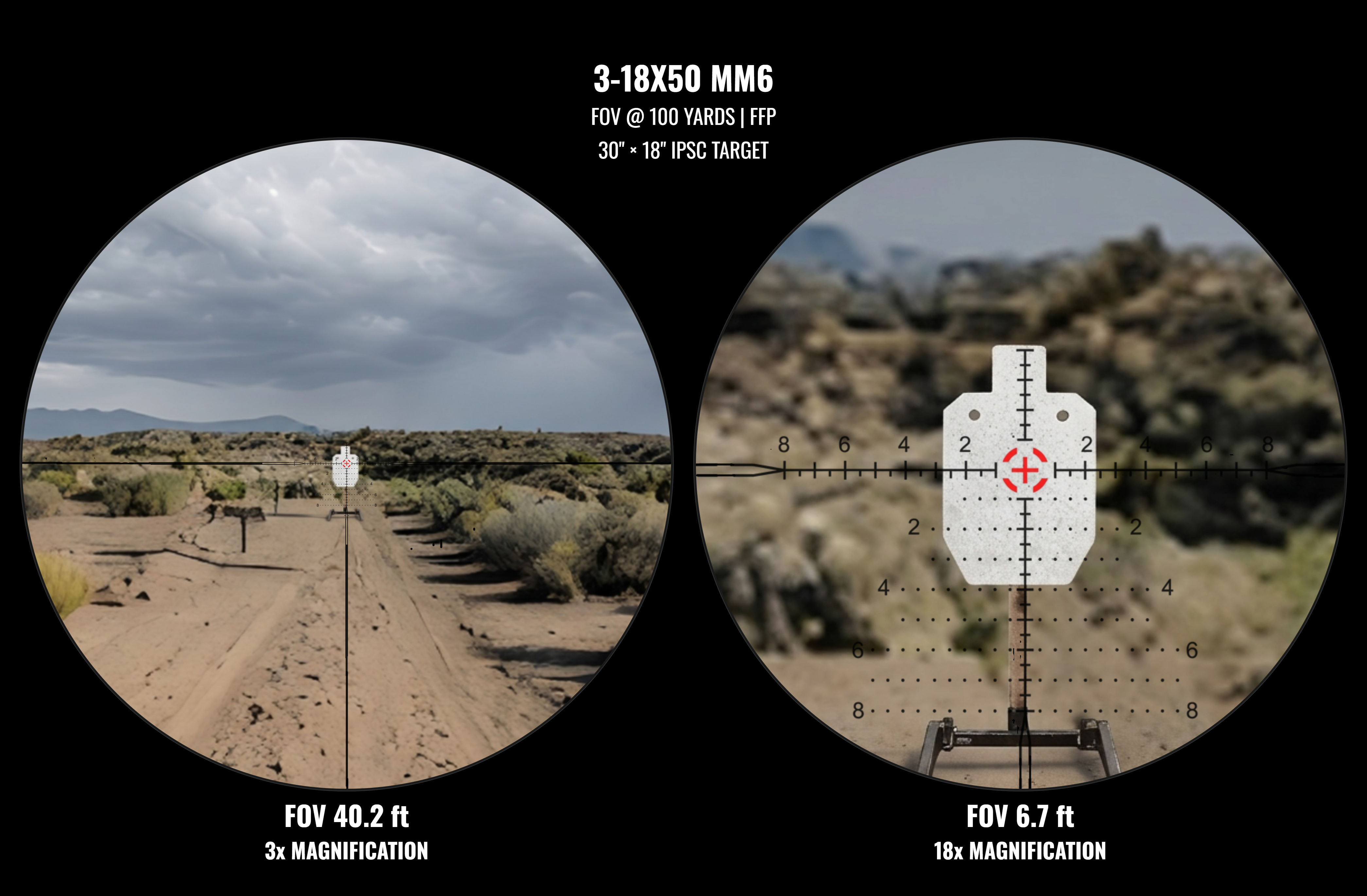

| 3-18x50 Challenger/Beast MM6 | FFP | MM6 | 3 | 40.2 | 18 | 6.7 | 8.73 MIL | 5.24 MIL | 8.73 MIL | 5.24 MIL |

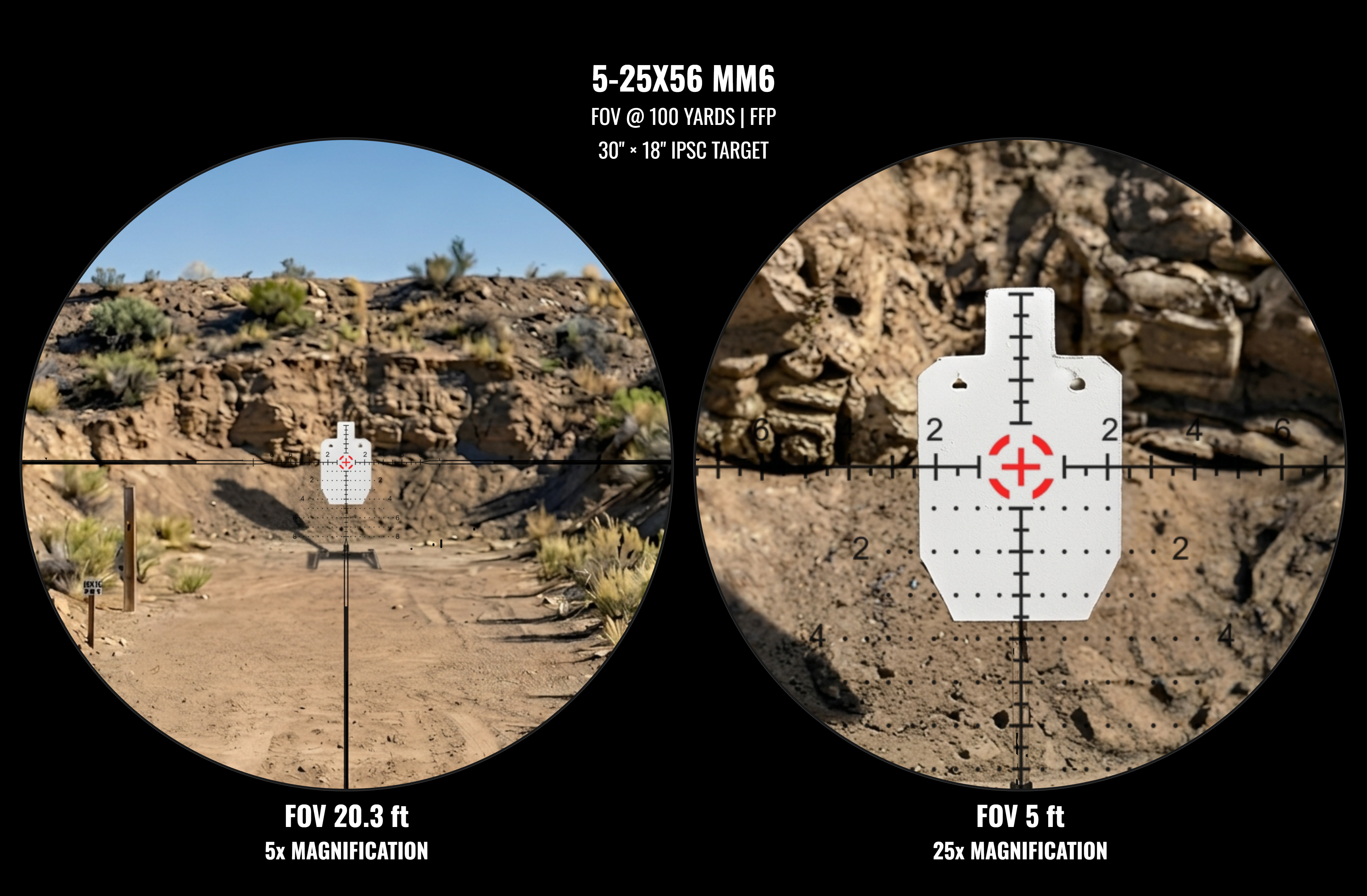

| 5-25x56 Beast MM6 | FFP | MM6 | 5 | 20.3 | 25 | 5 | 8.73 MIL | 5.24 MIL | 8.73 MIL | 5.24 MIL |

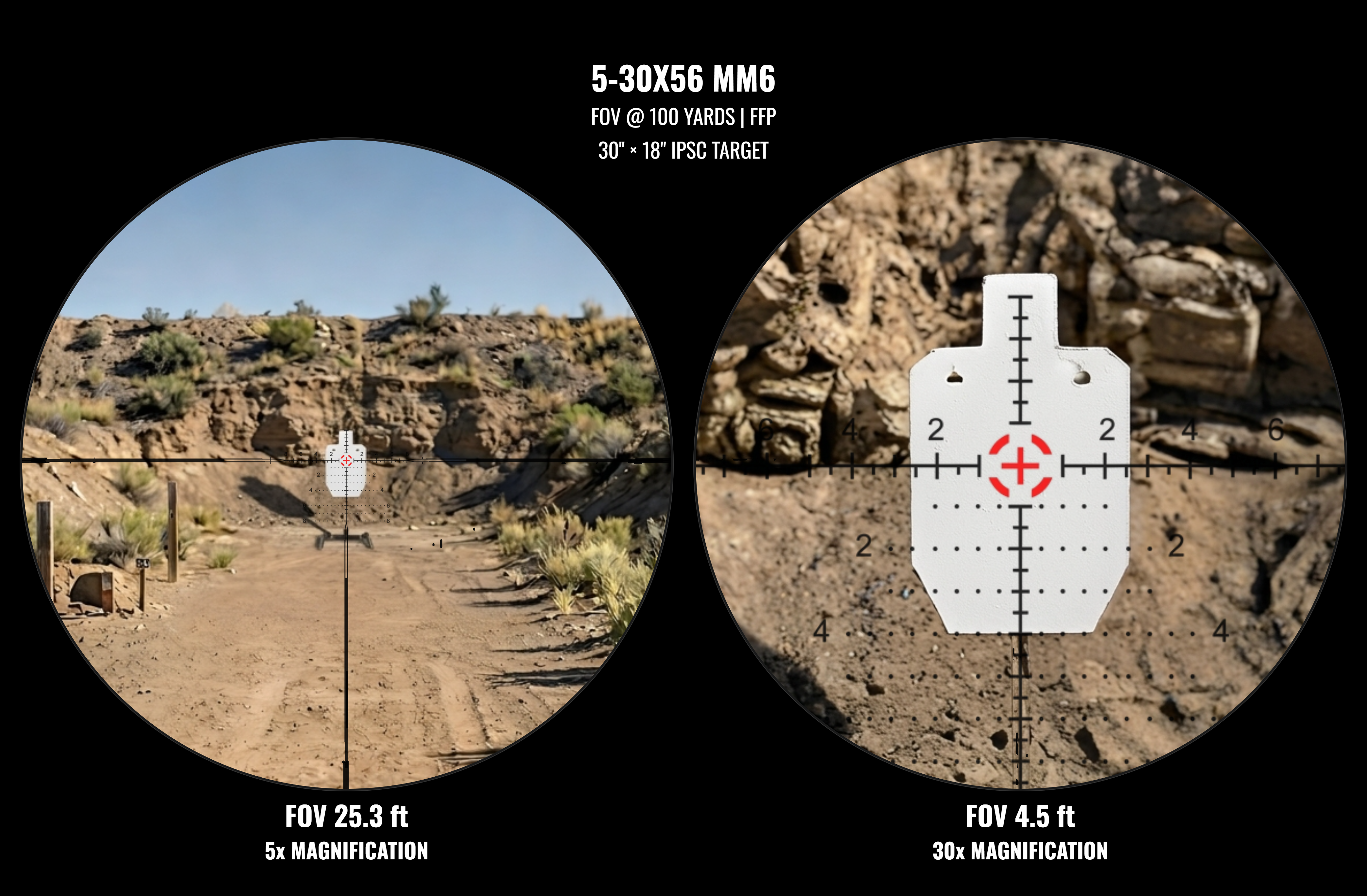

| 5-30x56 Beast MM6 | FFP | MM6 | 5 | 25.3 | 30 | 4.5 | 8.73 MIL | 5.24 MIL | 8.73 MIL | 5.24 MIL |

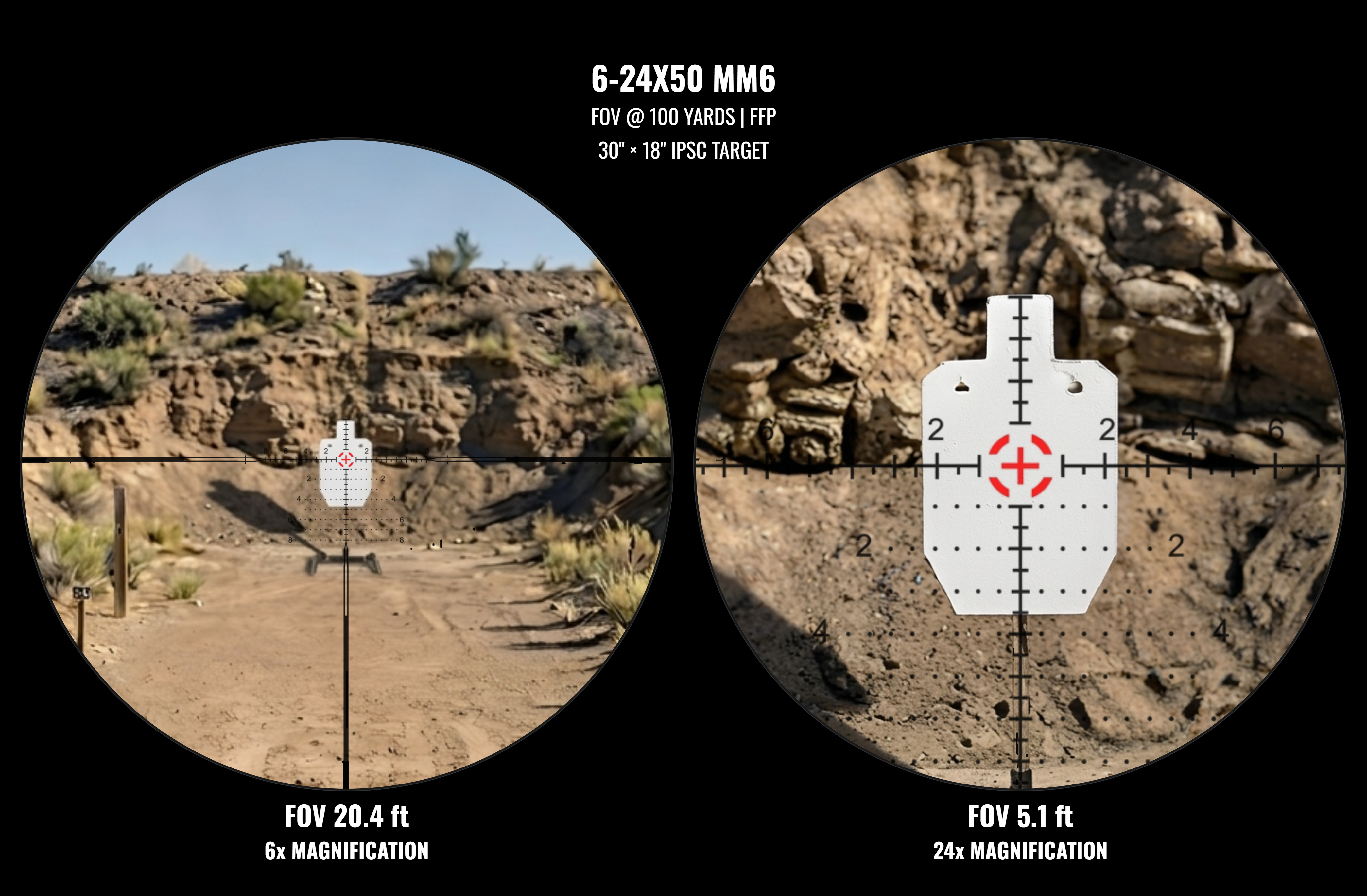

| 6-24x50 Beast MM6 | FFP | MM6 | 6 | 20.4 | 24 | 5.1 | 8.73 MIL | 5.24 MIL | 8.73 MIL | 5.24 MIL |
Available in These Optics:
