Type H Reticle Details
3-18x50 G3
6-24x50 G3
| Reticle | Focal Plane | Reticle Pattern | Minimum | FOV Min (100 yards) | Maximum | FOV Max (100 yards) | Height 30" (min) | Width 18" (min) | Height 30" (max) | Width 18" (max) |
|---|---|---|---|---|---|---|---|---|---|---|

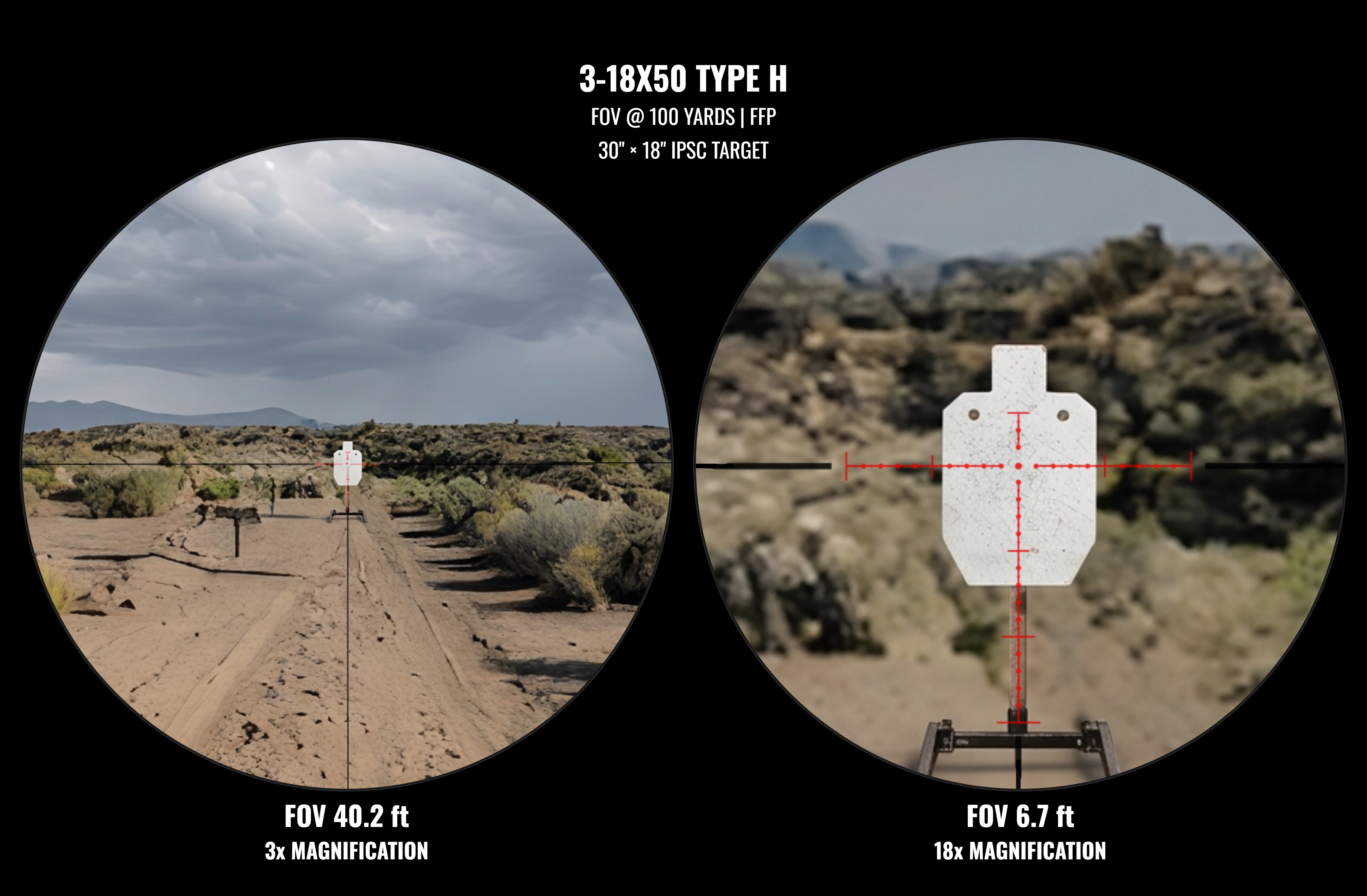

| 3-18x50 G3 Type H | FFP | Type H | 3 | 40.2 | 18 | 6.7 | 30 MOA | 18 MOA | 30 MOA | 18 MOA |

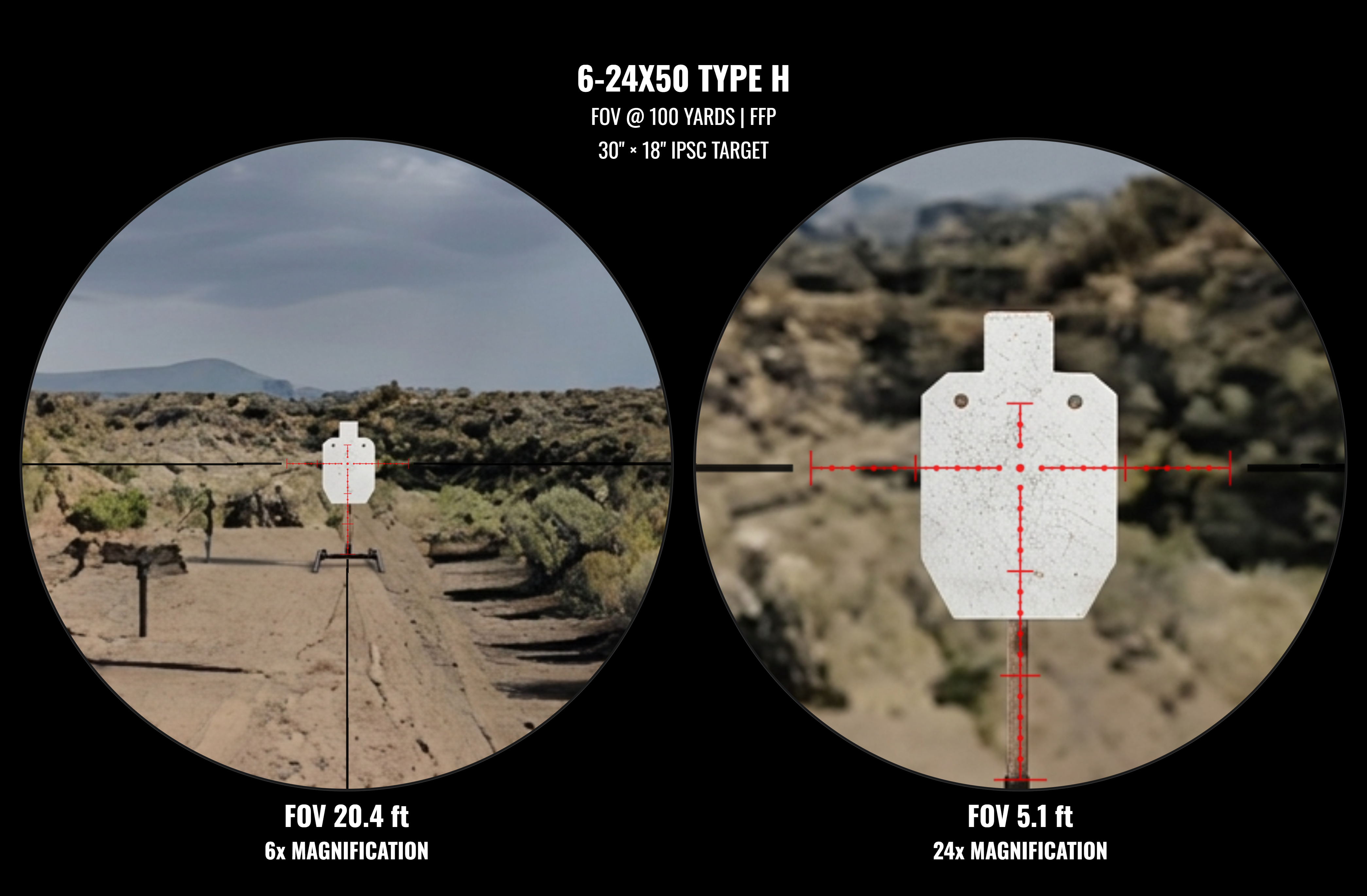

| 6-24x50 G3 Type H | FFP | Type H | 6 | 20.4 | 24 | 5.1 | 30 MOA | 18 MOA | 30 MOA | 18 MOA |
Available in These Optics:
